Can't complete login flow | There seems to be some bug in the code - Invalid Params

Help - Plug n Play iOS SDK
1

Please provide the following details too when asking for help in this category:

Not sure which params are invalid, if any.

  • Network: testnet

  • SDK Version: 6.0.1

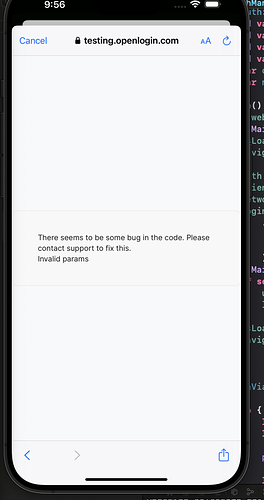

  • Screenshots of error:

    Screenshot 2023-10-26 at 9.56.53 AM
    Screenshot 2023-10-26 at 9.56.53 AM497Ă—939 102 KB

  • Related to Custom Authentication? Please provide the following info too: (Optional)

    • Verifier Name: ghosty-adventures

    • JWKS Endpoint: https://www.googleapis.com/service_accounts/v1/jwk/securetoken@system.gserviceaccount.com

    • Sample idToken(JWT): eyJhbGciOiJSUzI1NiIsImtpZCI6IjAzZDA3YmJjM2Q3NWM2OTQyNzUxMGY2MTc0ZWIyZjE2NTQ3ZDRhN2QiLCJ0eXAiOiJKV1QifQ.eyJpc3MiOiJodHRwczovL3NlY3VyZXRva2VuLmdvb2dsZS5jb20vZ2hvc3R5LXMtYWR2ZW50dXJlcyIsImF1ZCI6Imdob3N0eS1zLWFkdmVudHVyZXMiLCJhdXRoX3RpbWUiOjE2OTgzMzIxNTAsInVzZXJfaWQiOiJzbEJrZERoSEVxUFByU05BVzJ4ZmVhT2dybnYxIiwic3ViIjoic2xCa2REaEhFcVBQclNOQVcyeGZlYU9ncm52MSIsImlhdCI6MTY5ODMzMjE1MCwiZXhwIjoxNjk4MzM1NzUwLCJlbWFpbCI6ImN1c3RvbStpZF90b2tlbkBmaXJlYmFzZS5sb2dpbiIsImVtYWlsX3ZlcmlmaWVkIjpmYWxzZSwiZmlyZWJhc2UiOnsiaWRlbnRpdGllcyI6eyJlbWFpbCI6WyJjdXN0b20raWRfdG9rZW5AZmlyZWJhc2UubG9naW4iXX0sInNpZ25faW5fcHJvdmlkZXIiOiJwYXNzd29yZCJ9fQ.IAp66k5mfm-vxhnDbyLcep97tw7hNT137AmXxRQ0ssiYRZ4DZczNg4DGLJGwWdsswJn_BnP8cs2Z-FXNkLu9Sn8XFqAz-R4X-ZMWYk7QOV9_E1o28pv17O_E_A6bEh20WVhr-L76Hbizm6WHa0B25I0oi8ifHc2N4L0pvc9o58JZPIOqDThVGubYKMrjSzJqm6Itk0egMMOlARFM0yKbshbhcXxbxN_tI3-2CY6SLrjFpks29JgLqHwapihUyAgKNMQY6ll6CRzgZlriGbrSNsghSt5LxpOK2uoRHnjSr9AqKzqwsQSf7Q484qkbNa0yEnEwGMDKP2lCTTmMKE5i2w

Please provide the Web3Auth initialization and login code snippet below:

func setup() async {
        guard web3Auth == nil else { return }
        await MainActor.run(body: {
            isLoading = true
            navigationTitle = "Loading"
        })
        web3Auth = await Web3Auth(.init(
            clientId: clientId,
            network: network,
            loginConfig: [TypeOfLogin.jwt.rawValue:
                .init(
                    verifier: "ghosty-adventures",
                    typeOfLogin: .jwt
                )]))
        await MainActor.run(body: {
            if self.web3Auth?.state != nil {
                user = web3Auth?.state
                loggedIn = true
            }
            isLoading = false
            navigationTitle = loggedIn ? "UserInfo" : "SignIn"
        })
    }

   func loginViaFirebaseEP() {
        Task{
            do {
                let res = try await Auth.auth().signIn(withEmail: "custom+id_token@firebase.login", password: "Welcome@W3A")
                let id_token = try await res.user.getIDToken()

                let result = try await web3Auth?.login(
                    W3ALoginParams(
                        loginProvider: .JWT,
                    dappShare: nil,
                    extraLoginOptions: ExtraLoginOptions(display: nil, prompt: nil, max_age: nil, ui_locales: nil, id_token_hint: nil, id_token: id_token, login_hint: nil, acr_values: nil, scope: nil, audience: nil, connection: nil, domain: nil, client_id: nil, redirect_uri: nil, leeway: nil, verifierIdField: "sub", isVerifierIdCaseSensitive: nil),
                        mfaLevel: .NONE,
                    curve: .SECP256K1
                    ))
                await MainActor.run(body: {
                    user = result
                    loggedIn = true
                })

            } catch {
                print("Error \(error)")
            }
        }
    }
2

Here are the params being sent:

clientId : "BN8LcaHGfXTJ6KsbirnW65Fn6nmVw83jS5k0K_QOx7XOmRMMWBInUr2fFIjRGFRiykAscFMXw9InHcVqWRZG9uw"
  - network : Web3Auth.Network.testnet
  â–ż sdkUrl : https://dev-sdk.openlogin.com
    - _url : https://dev-sdk.openlogin.com
  - redirectUrl : nil
  â–ż loginConfig : Optional<Dictionary<String, W3ALoginConfig>>
    â–ż some : 1 element
      â–ż 0 : 2 elements
        - key : "jwt"
        â–ż value : W3ALoginConfig
          - verifier : "ghosty-adventures"
          - typeOfLogin : Web3Auth.TypeOfLogin.jwt
          - name : nil
          - description : nil
          - clientId : nil
          - verifierSubIdentifier : nil
          - logoHover : nil
          - logoLight : nil
          - logoDark : nil
          - mainOption : nil
          - showOnModal : nil
          - showOnDesktop : nil
          - showOnMobile : nil
  - whiteLabel : nil
  â–ż chainNamespace : Optional<ChainNamespace>
    - some : Web3Auth.ChainNamespace.eip555
  â–ż useCoreKitKey : Optional<Bool>

W3ALoginParams
  - loginProvider : "jwt"
  - dappShare : nil
  â–ż extraLoginOptions : Optional<ExtraLoginOptions>
    â–ż some : ExtraLoginOptions
      - display : nil
      - prompt : nil
      - max_age : nil
      - ui_locales : nil
      - id_token_hint : nil
      â–ż id_token : Optional<String>
        - some : "eyJhbGciOiJSUzI1NiIsImtpZCI6IjAzZDA3YmJjM2Q3NWM2OTQyNzUxMGY2MTc0ZWIyZjE2NTQ3ZDRhN2QiLCJ0eXAiOiJKV1QifQ.eyJpc3MiOiJodHRwczovL3NlY3VyZXRva2VuLmdvb2dsZS5jb20vZ2hvc3R5LXMtYWR2ZW50dXJlcyIsImF1ZCI6Imdob3N0eS1zLWFkdmVudHVyZXMiLCJhdXRoX3RpbWUiOjE2OTgzNDI5NDEsInVzZXJfaWQiOiJzbEJrZERoSEVxUFByU05BVzJ4ZmVhT2dybnYxIiwic3ViIjoic2xCa2REaEhFcVBQclNOQVcyeGZlYU9ncm52MSIsImlhdCI6MTY5ODM0Mjk0MSwiZXhwIjoxNjk4MzQ2NTQxLCJlbWFpbCI6ImN1c3RvbStpZF90b2tlbkBmaXJlYmFzZS5sb2dpbiIsImVtYWlsX3ZlcmlmaWVkIjpmYWxzZSwiZmlyZWJhc2UiOnsiaWRlbnRpdGllcyI6eyJlbWFpbCI6WyJjdXN0b20raWRfdG9rZW5AZmlyZWJhc2UubG9naW4iXX0sInNpZ25faW5fcHJvdmlkZXIiOiJwYXNzd29yZCJ9fQ.ZBHS-5mVBVyv2Kz3VF2ltPueMDYUhF8v1ncEgQYqC-LVLQIrkSYNgIaba5160qNFqS4K4c9sXfrjyu-CjrRASBdbNOPYuWqqDh5LAFO9eI5uYy6l8x-YfyK4T3xrWpbOQgoCOCrtPnO8G0AYwetauEQA73yMpZXUkTjjVLQdPCe1gdyyDDgUyViXVOAKa74-rFj9Q5zTvEBzoBR5efBILHpIJGPiROq6dl9Fqk0XX4k7apGdsCKwg3HKJeNR_YNnwKmPwRCp8kHo30x5mbCNLvNIPh1R7UHZlXlPzH_-JgRltvbKKb6q5WCt_YVmGwSBavoPHH7TAykC1RMJ8oMjNg"
      - login_hint : nil
      - acr_values : nil
      - scope : nil
      - audience : nil
      - connection : nil
      - domain : nil
      - client_id : nil
      - redirect_uri : nil
      - leeway : nil
      â–ż verifierIdField : Optional<String>
        - some : "sub"
      - isVerifierIdCaseSensitive : nil
  - redirectUrl : nil
  - appState : nil
  â–ż mfaLevel : Optional<MFALevel>
    - some : Web3Auth.MFALevel.NONE
  - sessionTime : 86400
  - curve : Web3Auth.SUPPORTED_KEY_CURVES.SECP256K1
4

@kenton Welcome Aboard!

Your request has been forwarded to our Dev team and we will get back with further updates.

1 Like
5

Thanks for the warm welcome @vjgee! Has there been any movement with this issue?

6

Hey @kenton, can you check if verifier ghosty-adventures is linked to any project or not?

7

Hey @maharshi

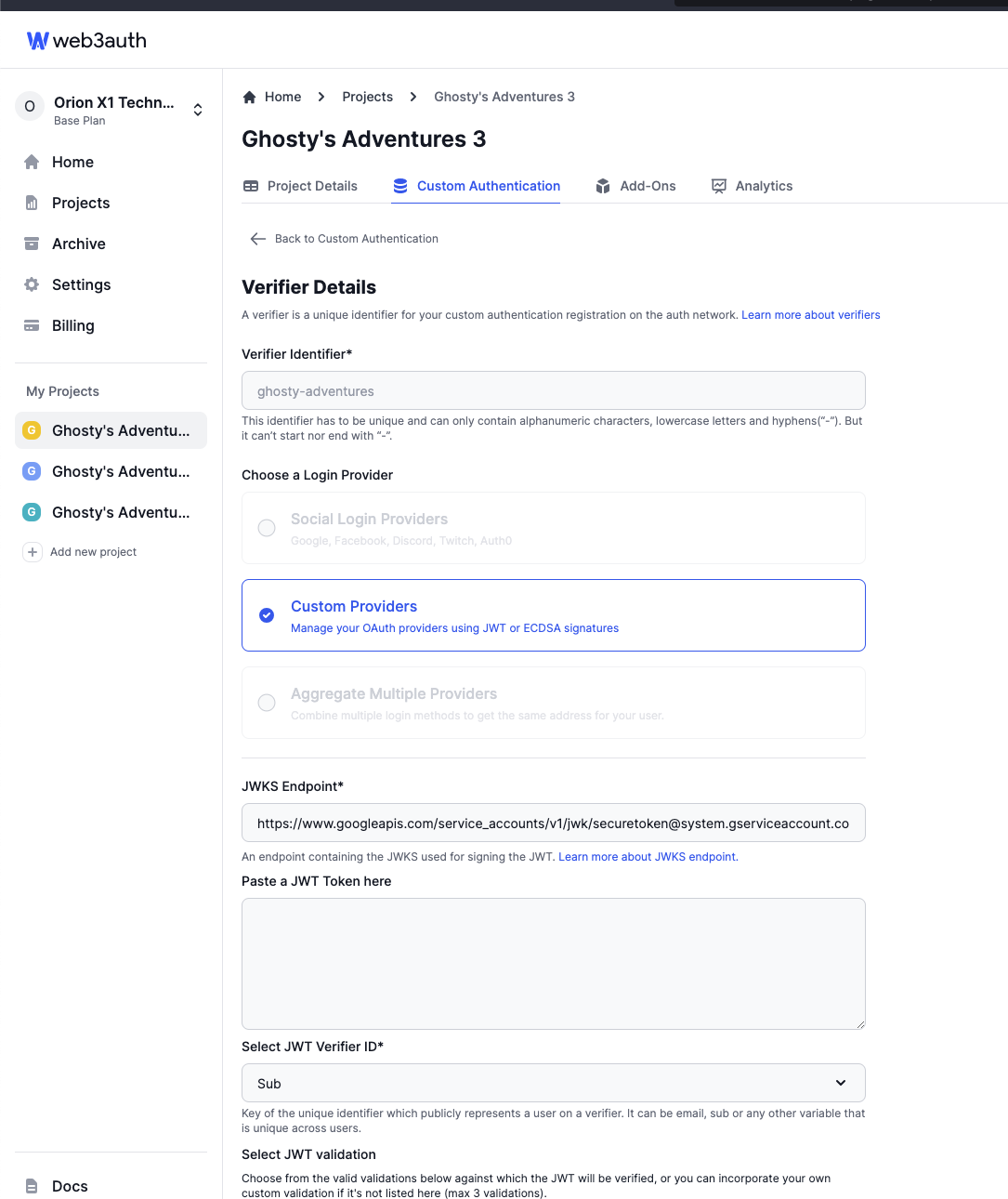

Yes, here’s the clientId and a screenshot BN8LcaHGfXTJ6KsbirnW65Fn6nmVw83jS5k0K_QOx7XOmRMMWBInUr2fFIjRGFRiykAscFMXw9InHcVqWRZG9uw

Screenshot 2023-11-10 at 6.41.20 AM
Screenshot 2023-11-10 at 6.41.20 AM1085Ă—1290 107 KB

8

There are two things I would request you to do and let me know if that fixes this issue for you.
First, try send ing the web3auth client id in the ExtraLoginOptions as well. And also, please update your SDK to the newest version. v7.4.0 is out.

9

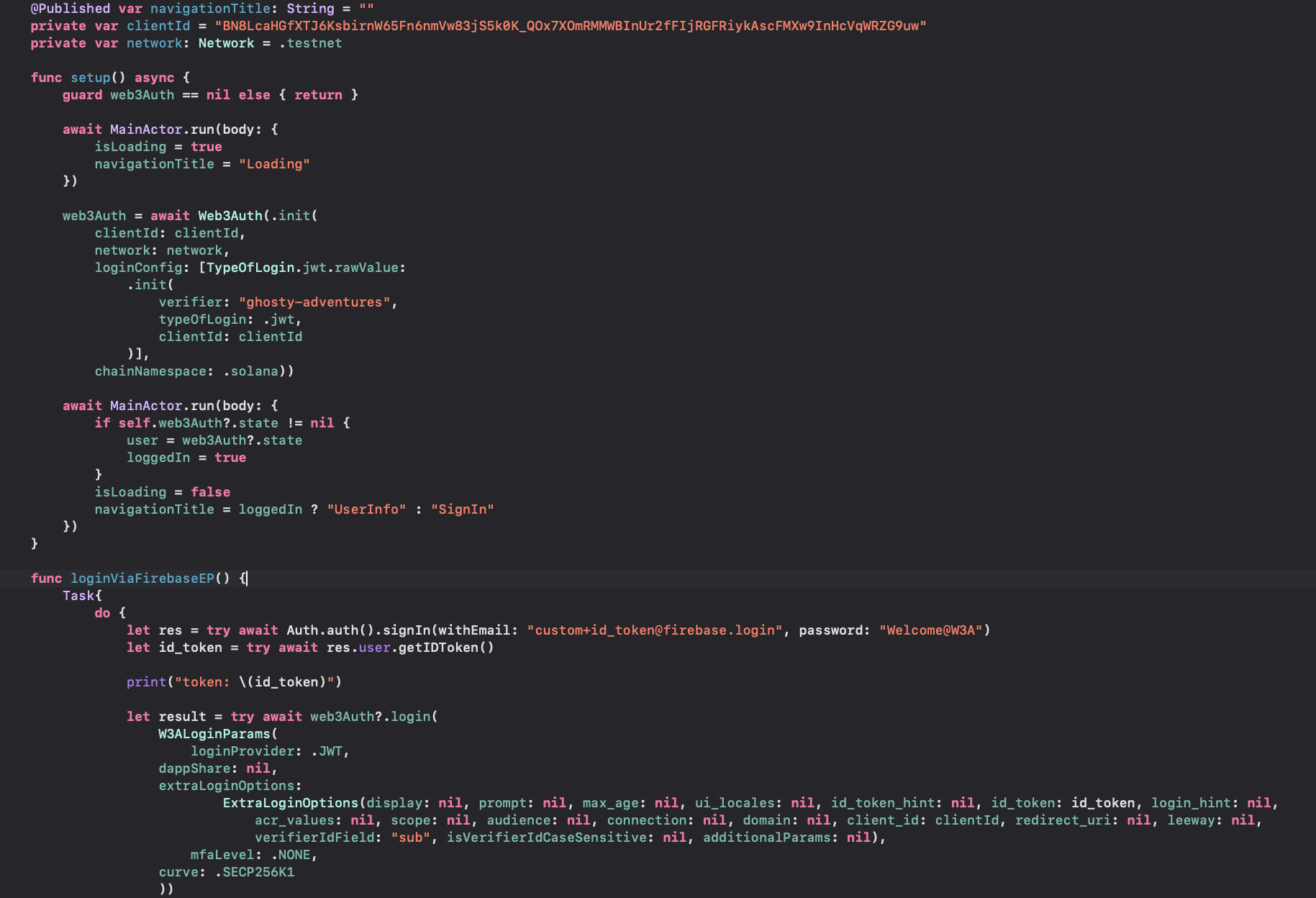

@maharshi In the image below you can see that I’ve added the clientId to the ExtraLoginOptions and to the init of the loginConfig.

Screenshot 2023-11-13 at 8.49.46 PM
Screenshot 2023-11-13 at 8.49.46 PM1829Ă—1248 240 KB

I’m now, after authenticating the user, the authentication modal dismisses and I get an “unknown error” printed in the console as well as some other stuff, I’ll copy below for you:

authrorize session response is: {
    message = "data saved successfully.";
    success = 1;
}
authrorize session response is: Optional(["message": "{\"iv\":\"6294f2e2d5f278997687761c2bc28a58\",\"ephemPublicKey\":\"04d23d3303ffa2fb98c1663d92f85fa76afe0c531db24eeea5e14a5fa31f8946d3173a7b42c0a6b42c965df027cdb0820604b29e3c90f94ecee58bca8663605e5e\",\"ciphertext\":\"5c6a51252c2567394a76395e5d63635e485a10d9965c4287a5ccae130698e04767fbf698c14c29578d240fcd8803676f46c476ee76a28a09ed9b2a85c5ffeceedcf68e287074c05a74d48721bf4919c28136fde95eb6c548f3909957a54c14e52b51c2e546ef0aa96ef02b43eef31752710b5d8fafe2f69fc525682c90b303ec94a8a21fd77f6ba7cda51aafb6f895bd5023313677f73192d7680d1f8f8736e24f7083443dc8881119b66b3d5572de4eeb4bc2ec97c65fac37603c9107d7ae28f8247a38a00f36391d2065ee396b5944287cb4786a6809eaf8dd1b217faf1a25a6bf4966253abd1edadc9f02755952cb80eee58a3d689e2758c375b27bb7b46d9905af57455cc7c108167bacb622873dc17ba1cf74a58dc387826314c7a8b8af08b79f803b9e6f47732632e6a9a674231b946a428488cdbbe270b38fe0264de506dad4e70d7ec876d21037c3d6516d5fecbacaa963ec2a0921263194df34b09962b23b8492fc345a5b4b3412081ad86020111bc6c6602948a4d5996448f9ed0edf0abd562b0dad24af5676058c26f5e92320fb3c62035969c617ce372cc41f313a2d5e9bb2b3a6ff8c3c77eb2fea1f907cf66a333c241adfe64f6e99e19ea2344a4fc8bd9c1eac70bebff99ef9e0d1621e0fb41e415eedb1de8b06c9d1705bf7ce0f74c08d1d9c2fd881799211419c1754dde4dde73dbf2864cc7cb9112f83aa7be67cedb5788fcff078b135ee693c354d9b30620be66e19c2e55b74533e4f3b7f1cbac081ac823035fcb99bf35cff234c066c47f4389176f2b5e876d77a4781e47dee5ccfd81f4db4528aa84df55a1ac4d58befc2da877847c0e42509fe9afa5ba229d1eab85a96f2a6209deb756187ec2c4a4a66a41efca6ecb0cd232f52798d0c608ca34d5ee687348c510cba20571376eb6bad7c859cc4c0afdd7e162e069d162d09c7e9fc5cbec0a560c48af25b1e6b5efcd3f37196c9433722a473815841cb3200681c48881d12c715a2b7acf2bfd8f5b1c1a767b993c8da01b7719109645cd6ba9f3ab3c3a5d761746381ad17b9b6c19a383e818fbde627a459d1beac0dec4c94e7873eabb6adddc7578b449f1ac7b465b6d797639dd35ac025619581c13e7e4cd94fc1998bf4bd76e34f589b034326ef0ec9465c8fab7569c426a7518eeb73d0cc1b811cf57bb6699d96c7dd82b936314a795f093f9c008a8062f113a6e416ae9c7483823c11547b4ed53c947e05617465875bfeb00fa9be778c4a67ad5208edb06f0909d0016c7a2974a103165ecfcb0f27346413242a472465375e56ec15985fb1a32aa883f35bb4d835aa538cded858d7af7a5329947a54b78d48e093ba0fa9310a589c353b4555ce3d9ba444770aea210e8a4e3a0d81100cd8797baa0fec6dfc48417bab7301ed6429c7fc561b3914aa56eb48f47a558ae6f48b12dc50f14d549d8cc8d0122e8c1d340725c6ed328fdf25b2a817c7c90a4e51922f0ea189dce20be0e8eb1d2f849ae8b74b4c6ec4f311ae1a3a2dc7fe7fc1361bd3aa566310930d64f7af58d8e59deb858a1a078e0e64f4a9d68d181ee38d3657cf9e266364e5b7ec4254074d198e3f01ae91451b2a8389321f8d103556482c4e9d5f964e38f37d48c71d0cb85f735b16878470300ff636af1d8276a90e9bf58c39e0050e6d3f09ef6c9f87c8a3b601c158ecc5b5cf0b8bbb9855e70971236dcaab1b6571087c50621b5df389b999f4170fc646a4f54828e4d50176cbe40c545600a77bc1e3bcca32a21c0a04107604fef8bb3c4c13f2436ab4e5528829385e2ccf168d7a46420af415f3b8975d5be761f15b26c5eadab14e3dfcadd083f1e6e415d55d6a9bd5e20aa27275de2392ae5da2b330da3e36635768e66cbf2c1756c33fe0bcee57ef7435701fadb753d26b8705d86155ebbb2deefe4f762f338c1cb536a542e41c19c57dab0cafe82c09db1661522e64488121bf49254674fb7f9ebd508cf66f29248af84c2a05a2b6d068947183e212526cddc404c20108c41387031bec1fcf7db837a35c836f0c533883ce6e7c65b5b434e2fbbfe4617c1885e6b9515494b0e048fb668774ac8c7cd4c30a5ee7e9581a533e63803f3199a0b2cdd7f1760e939383e9c12f1193e816052f9b26660747a7a59040b8ae7903c187325c5986a8154e55c2383bf8b10d28ac923e2ad88bf7ad6d020a2409f9055b959d035cff853065fbaae0b3a4ea4de5beb6852f738e85ebc1d144ab066a070c81be1db56c674b5d78b18a41fc46bc6c8463386f085cf24296375bb7b02c8111ea86aefb8ad7cfc5283a55efe9abd7cbdb62b078b077311ceff98da9a67230cd13ccb169165e1a1b93686fa2963d3bcff7e92b56aa85844a080fd83fb2c96af3b27278e10557616910b77f9b0b2192764e9ef8720253da07bee57d37863f1e7ba2286e481946646271c63a4b8e409b7ea358a7ab2dacad0bc57ad1403e90b6a30159b3293824fca64b8a4a6f0dea154898583ebe7f2c492c6e67b10639020bdef425268a4a464d18604489679ee126ed470b013831be222ed7f14662d280e7bf92adc11e57cc93707b47169d39d37a4abd69fc742d03ca5d24ec4183805b7e9d1f2bb8d726b243b9b668078142aece4cd96a71b41bf1de755922b8c98b2e5f852afcb712738db98085d9c893e9a209323378bfda76ae7ab0f85b441b3f6f69f8f7d9e2d8d38084ad7d3224a8646d2718b136b85908bb08dd1c3233a6d68e0e5701acbdd28d2d4c7ee14d56db725bb5abf5e0e180e4b2a9d97c2e0e45ad6c5b4e63ac075010694fc82f12d77ef226f8097b273915b70b24047ff73246042a0226487dee3297463ef371ba765851b50c30d8a27da059b247b0882ef77c430d8039e0240ea7845e5b52481f3fcf6be4a0da27fbe0db0d5c2dcadc6d8b28c5a836d882c4e624601bf7e262eba8300e3d9fcbf4d7f55bf548d7d4b1a7a5c7429f6bf3c9df414ed8ccb63639d942251453998fb80667d170baa8ef81e2c201b7e624a2a6c35d4bfc38b95c4cacd6ba8ed882185e23ffc35d5d60ac22f7f92416a3af53fc9095de0543d7bf135ce0fdbabb06824f676dc18ff4df8f8a081dd5aa05600374d202eb24d685bda0983e7b4e4aed4f32df2295620221c6aca57c1311126cad51b8898a2c1175a10837c90fb1e8d499486d535c803a994e0245cb18b18b92d6b10224210232a351c3d038c046ff03ec0509a3a8c40fb1221b2d4cea37e4558e8c7eea201d0def38b6fb58bb0a4920df0c835c89c140f75ac2b4c718ad31742ccc1b11572f61f604f5387765c6fc0d934f279e7729511f41f44fc40b3b521f063f2b55dad5b9999e06f1d23bfc09f08c44dedf43141d4c0a487c2f0140abe8b47c093e8bfb62bf897e7ebb9b8730aaf8331523f12aa39bf87717023af58210c98732aaec43ccefe7de92ad8563e3857635bc01a57d4215989debaf2be7dd33c3a6a8d1d6198f7f5de085efe86a56f83ddee6b0d36719983bc826fd7b8c3726e5d6390a011fb59c609e1a70bb03a5e8f1ea535c6e57213b899671b6305355c114bf53df8d3863ee7c12becab028bfff78f7e506de4588c42573a2a30476872b77c2a8e42decb2fe79d8848de64d7d82e2fd0718a54f7597d074a5806fcce3b593be24e2e468f767ef803397490cdf9ff1382286f8b0b3d1da6bb028e791571bc60738fe021d38edc5b714578796773311550fda8feaada0b6e837f1016a7001213a9d38af37ba36c7b656e727040111185ab793d1f4b89ba998b7af8257d503b89bbc25893716a6989c74e492cf90d8ba9a519275784c9d2440710964f76ae65164038d4c67fdc678ad02def13ea47eb53960b9781c5845f22ca5b6ece240303fba3ea913d914e3901db19997fa85e1ded78452babe87475abfe8d84946ffa930aef5b5d2b8bb6b6519dab1d6295a8bb65e94d8034c08f3a90187826481407d4e99598e\",\"mac\":\"82767c8f2d19c5ab13a4043ffa76e3de895e754815a07d55d0032e463b4d4946\"}"])
Error unknownError
10

@maharshi I’ve also updated to the latest sdk version.

11

Hey @kenton

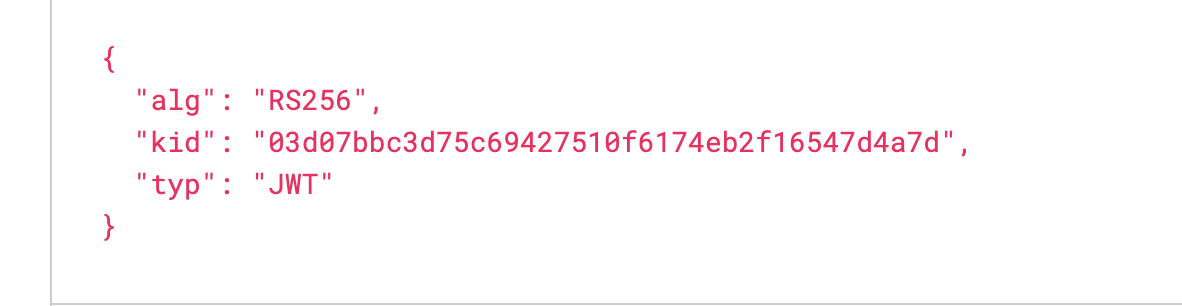

The id_token you have shared has a different kid value than what’s present in the JWKS endpoint.

Screenshot 2023-11-21 at 10.49.12 AM
Screenshot 2023-11-21 at 10.49.12 AM1182Ă—306 9.27 KB

May I know how you are generating the idToken?

12

@shahbaz I’m pulling it out of the signIn function.

Screenshot 2023-11-21 at 6.19.22 AM
Screenshot 2023-11-21 at 6.19.22 AM1400Ă—76 73.6 KB

If you go one screenshot up (in the previous reply) you’ll see what I’m talking about.

13

@shahbaz I set it up almost exactly like the example y’all provide in GitHub for SwiftUI

14

Did you create custom+id_token@firebase.login to your firebase dashboard? Also, I am keen to understand how the kid is different and how did you setup the firebase auth.

15

What do you mean exactly?

16

I think Shahbaz meant that in your signIn method that gives you the idToken, it accepts an email and password value. These values seem borrowed from our examples hence it will work with our Firebase configuration because we have set up this email and password as an acceptable set of parameters to login. By any chance have you changed the firebaseConfig to your own but forgot to allow this email and password as a set of acceptable parameter to log in? @kenton

17

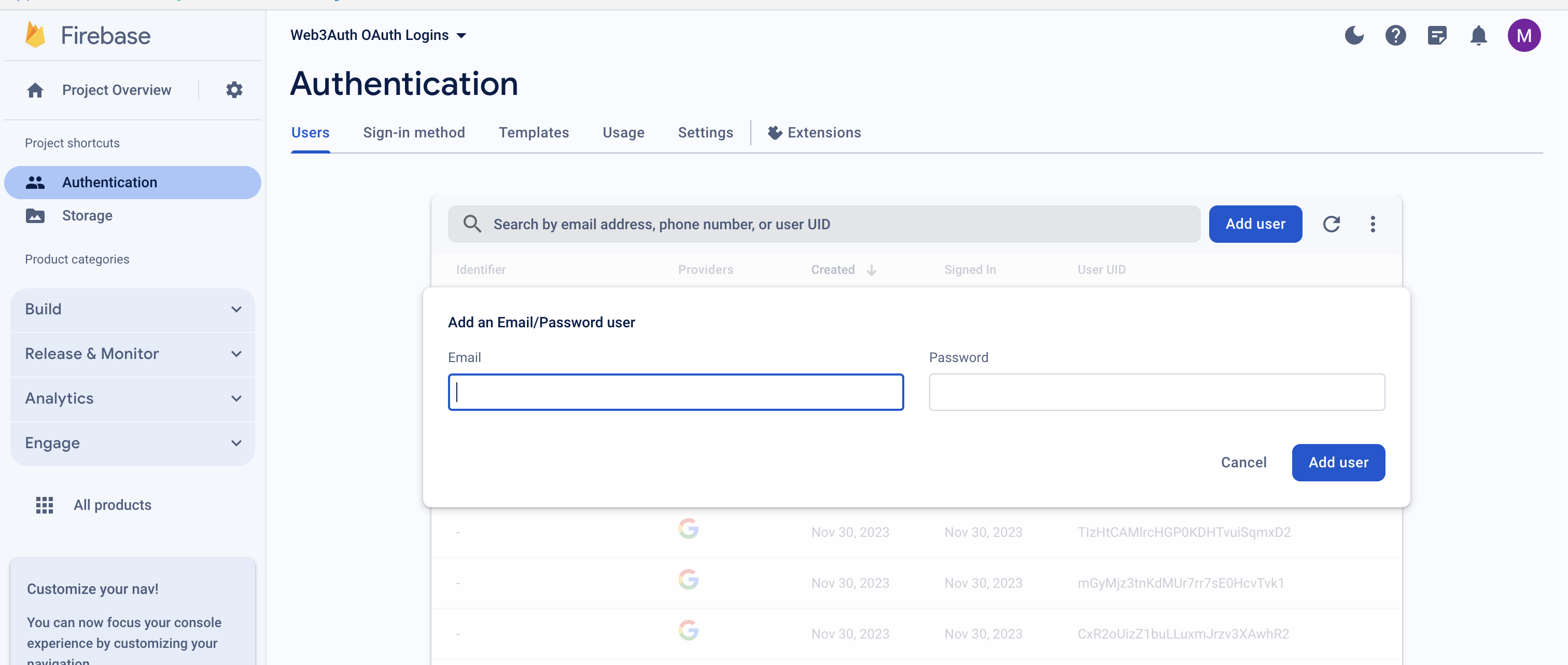

Attaching a screenshot of the page where you need to “Add user” to your firebase console for this login to happen smoothly. Here, add the set of email and password that you want firebase to consider valid.

image3024Ă—1282 318 KB

18

@maharshi Oh yes, sorry. The way it was worded through me off. Yes, I have set up the user in firebase and I can see that I’m authenticating into firebase successfully. After I am successfully authed, I am redirected to the web3 signin, that’s where the error is happening.
