Custom JWT Login with Web3Auth

Web3Auth supports integration with custom login providers through JWT-based authentication schemes, allowing developers to maintain their existing authentication infrastructure while leveraging Web3Auth’s wallet and key management capabilities. Custom authentication can be implemented using industry-standard cryptographic algorithms such as RSA or ECDSA signatures.

To use this feature, developers must ensure that their JWTs adhere to the JWT specification. Each JWT must be signed using a private key, and its corresponding public key must be accessible via a JWKS (JSON Web Key Set) endpoint. Web3Auth will use this endpoint to verify the integrity and authenticity of incoming tokens during login.

Once the Custom JWT login is working, developers can proceed to add it as a custom connection in the Web3Auth Dashboard.

Set up Custom JWT Connection​

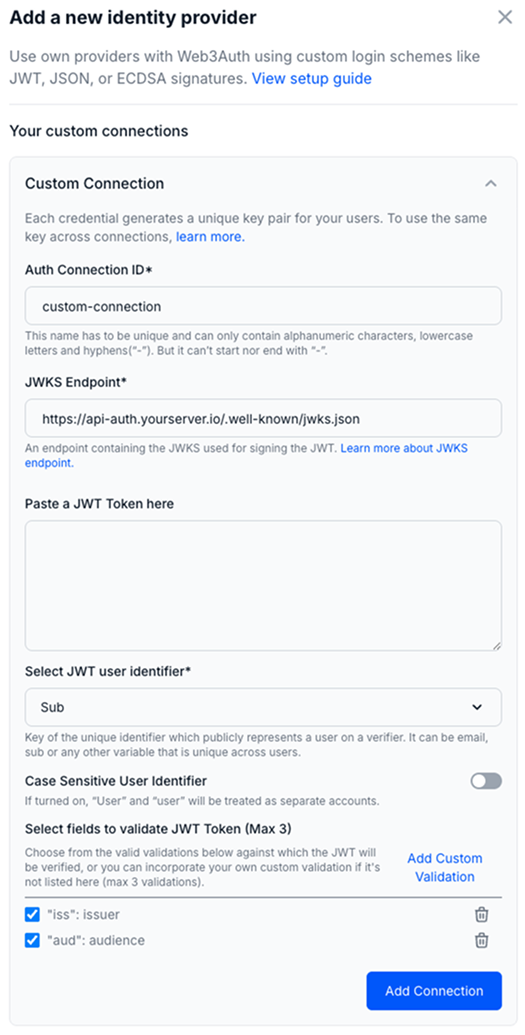

Create Custom Connection on Dashboard

To use this feature, developers must go to the Custom Connections tab in the Web3Auth Dashboard.

Custom Connection Options

Follow these steps to create a AWS Cognito connection:

  1. Visit the Web3Auth Dashboard.
  2. Go to the Custom Connections section.
  3. Click on the Settings icon near the Custom Connection.
  4. Enter the Auth Connection ID.
  5. Paste the JWKS Endpoint.
  6. Paste a sample JWT Token to auto populate the best JWT validations possible.
  7. Select the JWT user identifier: email, sub or custom.
  8. Toggle the Case Sensitivity of User Identifier. (Optional)
  9. Click on Add Custom Validations to add validations manually.
    1. Type iss as a field and your-issuer as a value.
    2. Next, type aud as a field and your-audience as a value.
  10. Finally, click on the Add Connection button.
Custom JWT Connection

Create JWT​

To generate the JWT, developers may use a package of their choice. Web3Auth provides documentation and examples using both the jsonwebtoken and jose libraries.

Generate Private Key​

Developers can generate a private key using the openssl command-line tool. This private key will be used to sign the ID token.

Developers can run the following command in the terminal to generate a new privateKey.pem file containing the RSA256 key details.

openssl genrsa -out privateKey.pem 2048

Once the private key is generated, developers can generate the public key which can be used to verify the JWT and convert it to JWKS.

openssl rsa -in privateKey.pem -pubout -out publicKey.pem

Install JWT Library​

Developers can install a JWT library of their choice. Following are the documentation and examples using both the jsonwebtoken and jose libraries.

npm i jsonwebtoken

npm i jose

Generate JWT​

Web3Auth provides documentation for using RSA256 and ECDSA—two of the most commonly used algorithms—for generating JWTs with the jsonwebtoken package. For a complete list of supported algorithms, developers can refer to the jsonwebtoken documentation.

Developers can create an index.js file and insert the following code snippet to generate a JWT using the RSA algorithm.

import jwt from "jsonwebtoken";
import fs from "fs";

var privateKey = fs.readFileSync("privateKey.pem");

var token = jwt.sign(
  {
    sub: "faj2720i2fdG7NsqznOKrthDvq43", // must be unique to each user
    name: "Mohammad Shahbaz Alam",
    email: "shahbaz@web3auth.io",
    aud: "urn:my-resource-server", // -> to be used in Custom Authentication as JWT Field
    iss: "https://my-authz-server", // -> to be used in Custom Authentication as JWT Field
    iat: Math.floor(Date.now() / 1000),
    exp: Math.floor(Date.now() / 1000) + 60 * 60,
  },
  privateKey,
  { algorithm: "RS256", keyid: "1bb9605c36e69386830202b2d" }, // <-- Replace it with your kid. This has to be present in the JWKS endpoint.
);

console.log(token);
Facing issue with JWT?

Check out this troubleshooting page to fix those.

Usage​

Since, the Custom Connection details are available from Dashboard, developers don't need to pass any additional parameters to the Web3AuthProvider.

Follow our Quickstart Guide to setup the basic flow.

Login with JWT​

App.tsx
const getIdToken = async () => {
  // Get ID Token from server
  const res = await fetch("http://localhost:8080/api/token", {
    method: "POST",
    headers: {
      "Content-Type": "application/json",
    },
  });
  const data = await res.json();
  return data?.token;
};

const loginWithJWT = async () => {
  try {
    const idToken = await getIdToken();

    await connectTo(WALLET_CONNECTORS.AUTH, {
      authConnection: AUTH_CONNECTION.CUSTOM,
      authConnectionId: "w3a-node-demo",
      idToken,
      extraLoginOptions: {
        isUserIdCaseSensitive: false,
      },
    });
  } catch (err) {
    console.error(err);
  }
};

What are JWKS?​

JWKS stands for JSON Web Key Set. It is a set of keys containing the public keys that should be used to verify any JSON Web Token (JWT) issued by the authorization server and signed using the RS256 signing algorithm.

How to create JWKS?​

  • Most of the login providers that support JWT-based login will provide you this URL, such as Firebase, Google, Auth0, AWS Cognito etc.

    • Firebase: https://www.googleapis.com/service_accounts/v1/jwk/{your-project-id}
    • Auth0: https://{your-domain}/.well-known/jwks.json
    • Google: https://www.googleapis.com/oauth2/v3/certs
    • AWS Cognito: https://cognito-idp.{region}.amazonaws.com/{userPoolId}/.well-known/jwks.json

  • If you are using your own custom JWT, you will need to convert your PEM file to JWKS.

How to convert PEM to JWKS?​

If you're using jose or jsonwebtoken library, you can use the following steps to convert your PEM file to JWKS.

  1. Create a Private Key using openssl.

    openssl genrsa -out privateKey.pem 2048

    This privateKey will be used to sign the token.

  2. Using the above privateKey.pem file, create a Public Key.

    openssl rsa -in privateKey.pem -pubout -out publicKey.pem

    This publicKey.pem file will be converted to JWKS.

  3. Convert the publicKey.pem file to JWKS.

    Now, look for a tool that converts .pem to jwk(s) format.

    • One of the tools is https://pem2jwk.vercel.app/

      • Select Signing Algorithm: RS256
      • Select Public Key Use: Signing
      • Key ID: paste-yours or leave it blank to generate a random one.
      • PEM encoded key: {paste-the-publicKey-pem-file-s-content-here}

    • Click on the Convert to JWK button.

      JWKS Convert Tool

  4. To complete the process, you need to save the output as a .json file, host it on your server, and make sure it's publicly accessible.

    This will give you the JWKS Endpoint, which is required when setting up a Custom JWT Verifier on the Web3Auth Dashboard.
