Web3Auth MPC Core Kit React Native SDK

Web3Auth's @web3auth/react-native-mpc-core-kit SDK is simple and easy-to-use SDK for react native environment, that helps you implement Web3Auth's MPC Threshold Signature Scheme (TSS) features in which the private key is never reconstructed.

Compared to other Web3Auth SDKs, such as Plug and Play (PnP) and Single Factor Auth (SFA) SDKs, where the private key is securely reconstructed on the user's device and used to sign transactions, the MPC TSS architecture ensures that the private key is never reconstructed for signing. However, the SDK provides options to export the private key if the user wants to use their account in other wallets. This approach eliminates vendor lock-in, unlike other MPC solutions.

Instead, the partial key shares are stored at different locations which are used to generate the partial signatures. The final signature is generated combining the partial signatures using the TSS. Since the private key is never reconstructed, it's more secure approach.

info

The SDK is only available for the Enterprise Plan. However, you can test the SDK with all features enabled in the sapphire_devnet.

Web3Auth MPC Infrastructure​

The Web3Auth infrastructure is designed to ensure the security of user keys. Instead of being stored in a single location, the key is divided into multiple parts and distributed across the user's devices and our Web3Auth Network. This means that the key is always available and never in danger of being compromised.

The traditional Web3Auth SDK uses Shamir Secret Sharing (SSS) to dynamically reconstruct the key in the frontend. However, with the new Web3Auth MPC (Multi Party Computation) architecture, this is no longer necessary. Instead, partial keys are stored in different locations, and the user's device is used to make partial signatures for messages and transactions.

These partial signatures are then combined using the TSS (Threshold Signature Scheme) to create a final signature, which can be used to make a transaction on the blockchain. The result is a more secure and user-friendly authentication process that helps to protect against key theft and other types of security breaches.

The Threshold Signature Scheme (TSS) is a cryptographic primitive for distributed key generation and signing. The use of TSS in Web3Auth Network is a new paradigm that can provide numerous benefits, especially in terms of security.

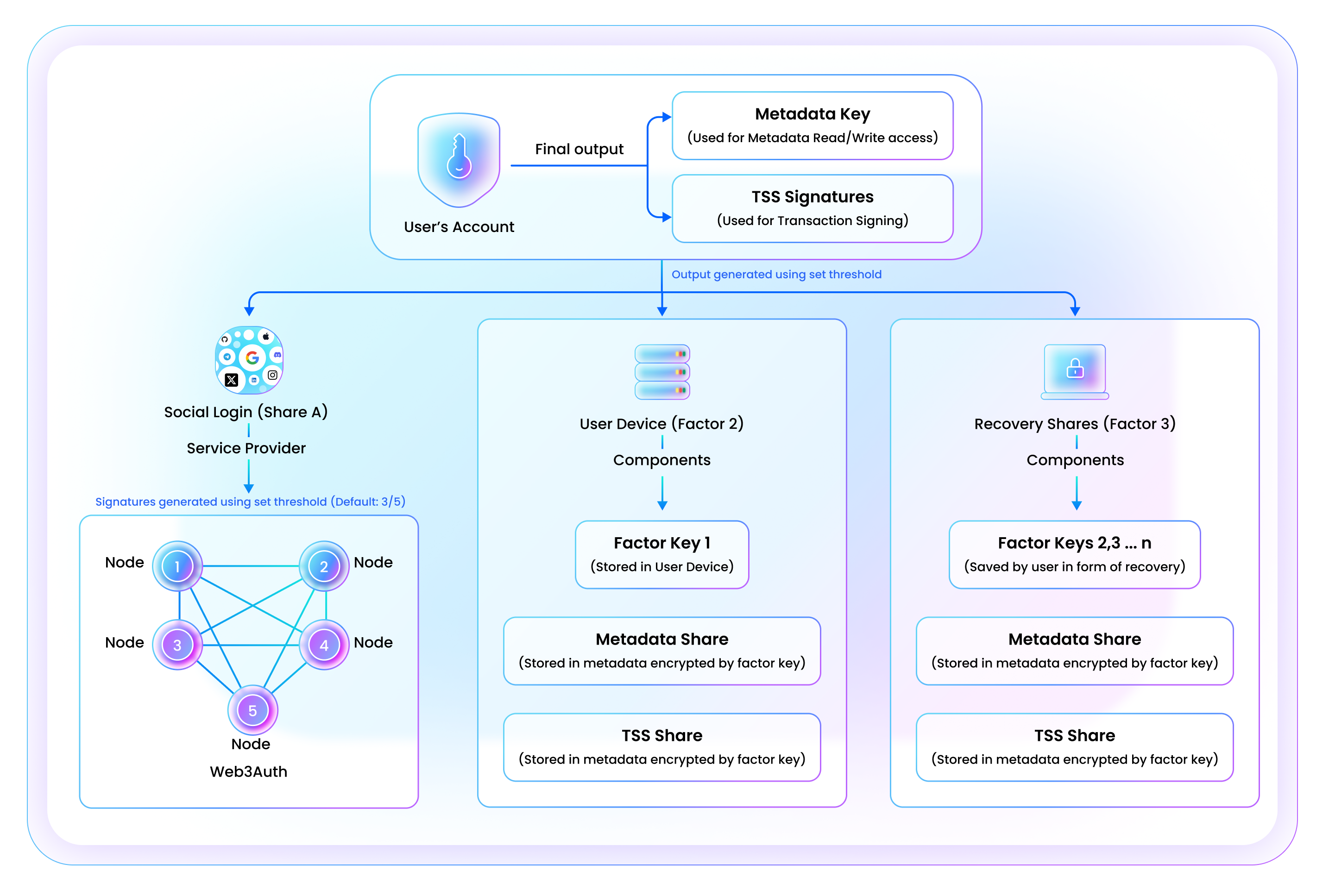

This diagram describes the relationship between the Web3Auth SDK and integrating application

As you can notice in this diagram above, the final output, i.e., the User's TSS Account, is generated in multiple stages within the infrastructure. Since this is a TSS- MPC based infrastructure, you don't get back a private key, but signatures that can be used to make transactions on the blockchain. Let's understand each of these stages in detail.

Types of Factors​

Social Login Factor​

This is the primary way for a user to access their account. This step involves authentication of user using a preferred social login provider. The idToken received from the social login provider here is passed to the Web3Auth Network to generate the TSS Shares in the Nodes.

By default, these nodes have a threshold of 3/5 that can be customized according to requirements. When a user logs in, the Web3Auth Network generates signatures corresponding to the TSS Shares in the nodes and returns them to the user's end. These signatures are then used alongside other shares to generate the final TSS Account signatures.

Hashed Cloud Factor​

The MPC Core Kit SDK starts in a 2/2 flow by default. This means when user's logs in, a social login factor is generated and at the same time SDK will generate a hashed cloud factor. This hashed cloud factor is derived on the front end and stored in the encrypted metadata server. Please refer to the above architecture to understand more about factors.

This is done to make sure the user can access their account from any device without having to generate a new factor. The hashed cloud factor is deleted when the user enables the MFA.

Device Factor (Factor Index: 2)​

This is the second factor used to access the user's account. This step involves the generation of a TSS Share on the user's device and using that to generate a final signature for the TSS Account alongside the social login factor. This ensures the user logs in using their trusted device and maintains a proper non-custodial setup.

Backup Factor (Factor Index: 3)​

A user has a choice to generate as many backup factors as needed to access their account. This step involves the generation of a TSS Share on the user's end and storing them in whichever location they prefer. This share can be used similarly to the device share to generate a final signature for the TSS Account alongside the social login and/or device factors.

When user changes their device, their device factor will not be present on the new device. In that case, the user can use the backup factor to access their account. You can choose to define the backup factor of your choice like social recovery, Email OTP, SMS OTP, Authenticator app, etc.

Threshold​

The threshold is the minimum number of shares required to generate a final signature for the TSS Account. By default, the Web3Auth Network requires 3 out of 5 shares (3/5) to generate a signature. This means that out of the 5 shares distributed across different nodes, any 3 shares can be combined to create the final signature. This setup ensures high availability and security, as it allows for some shares to be unavailable or compromised without affecting the overall system.

On the user's device front, the default threshold is set to 2 out of 3 shares (2/3). This means that out of the 3 shares available on the user's device, any 2 shares can be used to generate the final signature. This setup provides a balance between security and ease of access, ensuring that the user can still access their account even if one share is unavailable.

Only the user level threshold can can be customized according to the requirements. The Web3Auth Network threshold is fixed at 3/5.

Please note that when a user logs in for the first time, the threshold is set to 2 out of 2 shares (2/2). This means that both shares are required to generate the final signature. After the user enables the MFA flow, the threshold is set to 2 out of 3 shares (2/3), providing an additional layer of security.

Components of a Factor​

TSS Shares​

The TSS Shares are the main component needed for the generation of the final working signature of the user. These shares are generated using distributed key generation(DKG) and are stored in the Web3Auth Network and the user's device. Since these shares are generated using MPC, they are never reconstructed and always stay decentralized and secure.

We've included a function in the SDK that lets you reconstruct the TSS Key from the shares. Just a heads-up, this function is marked as unsafe, so it's best to use it with extra layers of security. For example, only make this function available when MFA is enabled and ask the user to input their MFA share while exporting.

Metadata Key & Shares​

The Metadata Key closely mimics the storage of the TSS Shares. The only difference is that the metadata key is always reconstructed and used for its encryption/decryption capabilities. It utilizes basic Shamir's Secret Sharing and is initially generated on a user's front end. The metadata key is utilized for the encryption/decryption of the user metadata stored in the Web3Auth Metadata Server.

One metadata share gives you the read access to the metadata server, while two or more (as the threshold is reached) give you the write access.

Factor Keys​

To enable refresh, deletion, and rotational capabilities on the TSS Key, we also introduce factor keys. Factor Keys are randomly generated keys unique to each factor-generated user's device and backups, like users' phones, chrome extensions, on their cloud, assisting third parties, etc.

As share to the TSS Key and/or Metadata Key may rotate, Factor Keys allow a consistent secret to be saved in these different locations.

Understanding the SDK Flow​

By default, for a new user, the MPC Core Kit SDK starts in a 2/2 flow. This means that the user will have to generate a social login factor and a hashed cloud factor. This hashed cloud factor is derived on the SDK front end and stored in the encrypted metadata server. This enables the user to start the login process from any device without creating an MFA factor.

This is done to make sure the user can access their account from any device without having to generate a new factor. However, this makes the initial onboarding, semi-custodial. To make the account completely non-custodial, the user can use the enable MFA feature to generate a device and backup factor and delete the hashed cloud factor. This makes the user's account completely non-custodial in 2/3 setup and enables them to access their account from any device using the backup share. Device share is saved on a trusted device and can be used to access the account from that device seamlessly without having to generate a new factor.
